Q51

MCQ2 marks, −0.67

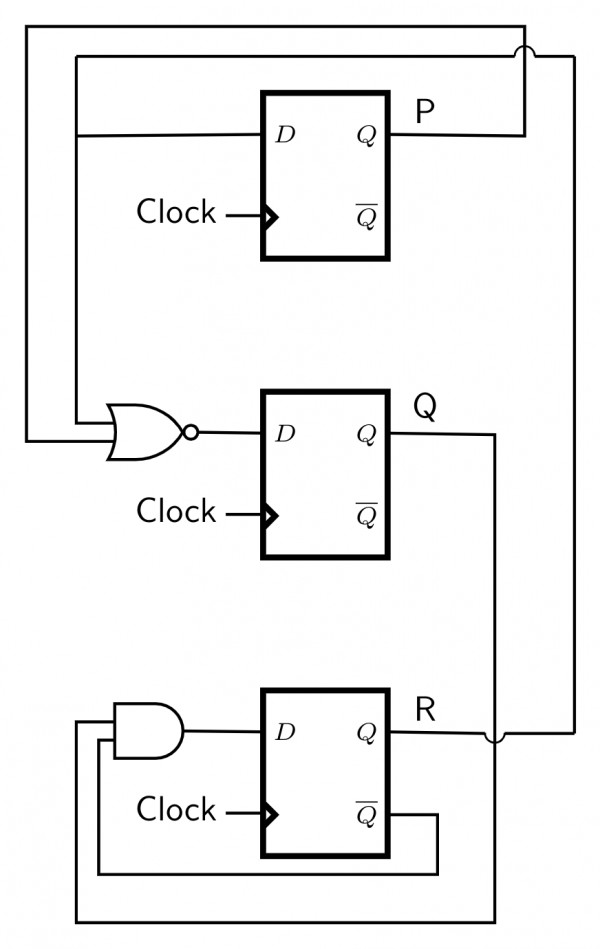

Consider the following circuit involving three D-type flip-flops used in a certain type of counter configuration.

Figure 1

If all the flip-flops were reset to 00 at power on, what is the total number of distinct outputs (states) represented by PQRPQR generated by the counter?
