← GATE CSE 2011

Q50

MCQ2 marks, −0.67

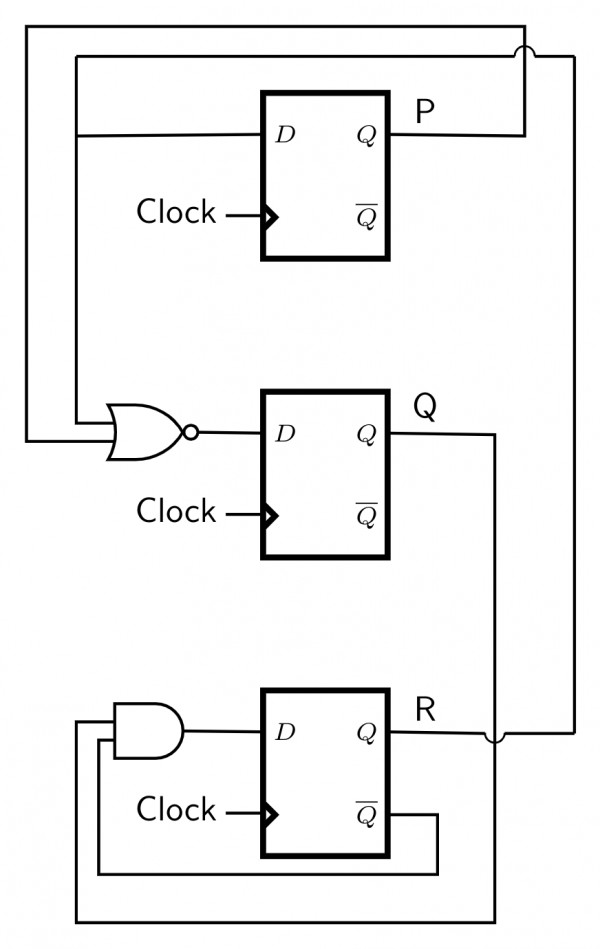

Consider the following circuit involving three D-type flip-flops used in a certain type of counter configuration.

Figure 1

If at some instance prior to the occurrence of the clock edge, P,QP, Q and RR have a value 00, 11 and 00 respectively, what shall be the value of PQRPQR after the clock edge?
