Q45

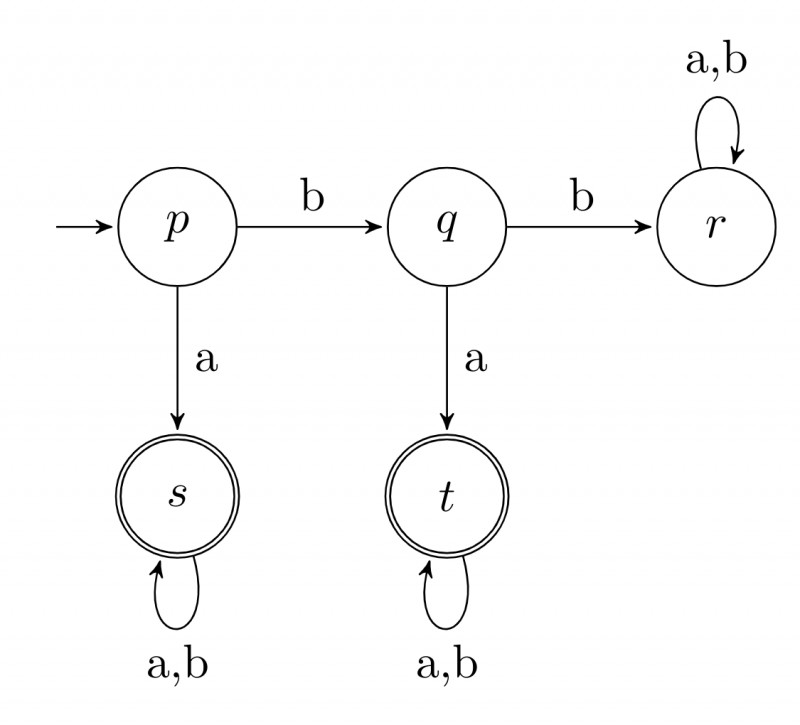

A deterministic finite automaton ($\text{DFA}$) $D$ with alphabet $\Sigma = \{a, b\}$ is given below.

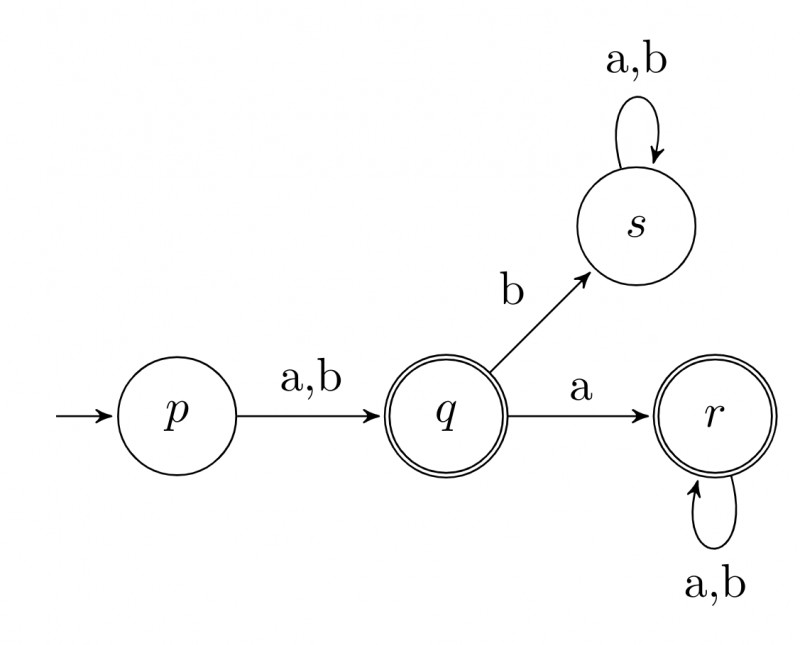

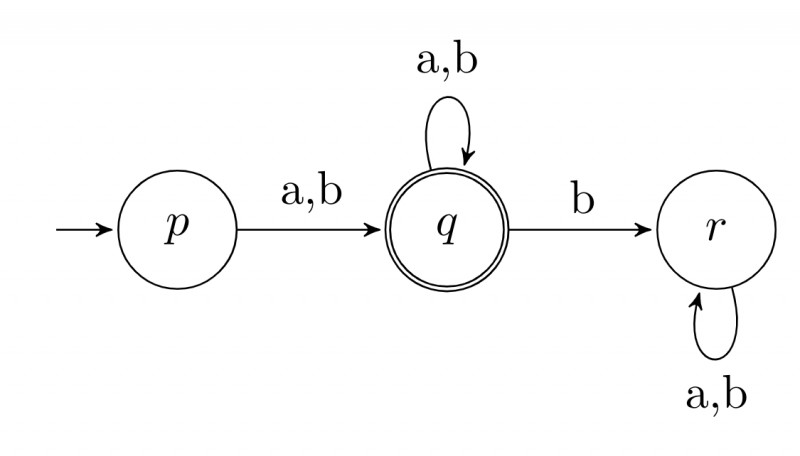

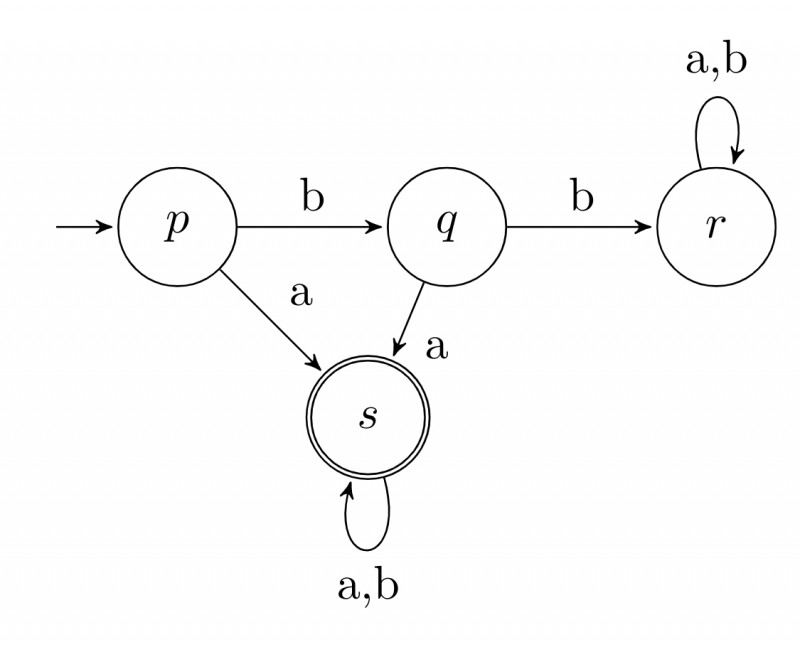

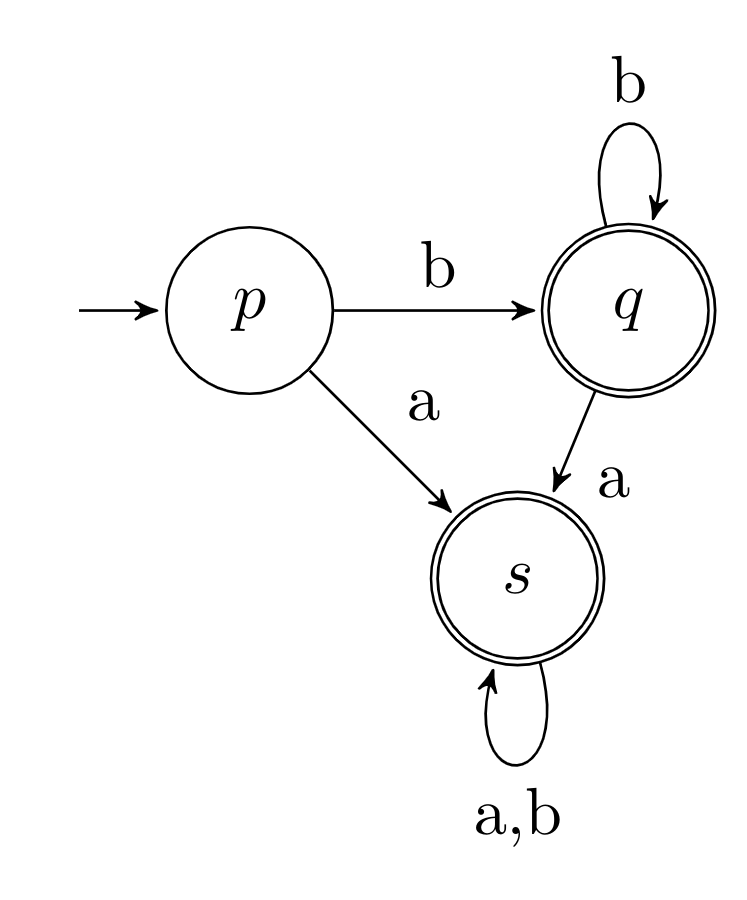

Which of the following finite state machines is a valid minimal $\text{DFA}$ which accepts the same languages as $D$?
