Q27

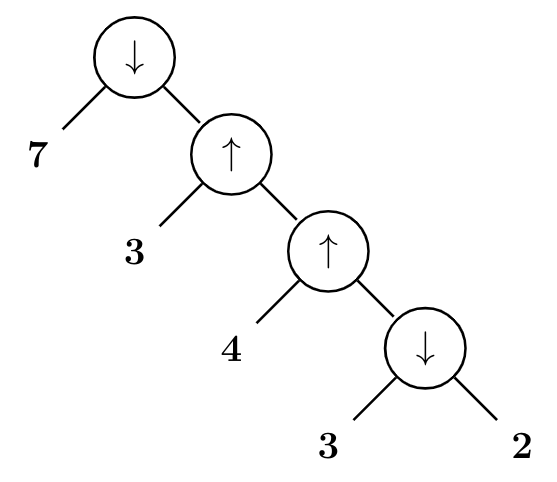

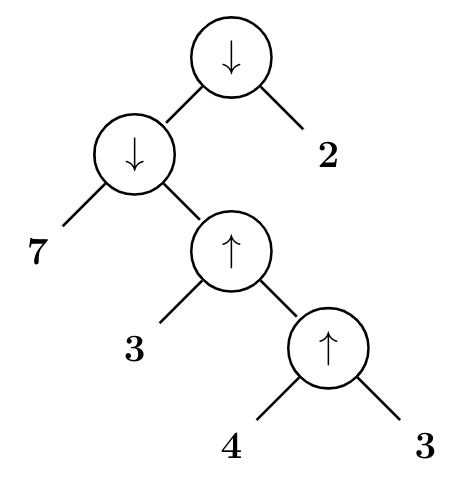

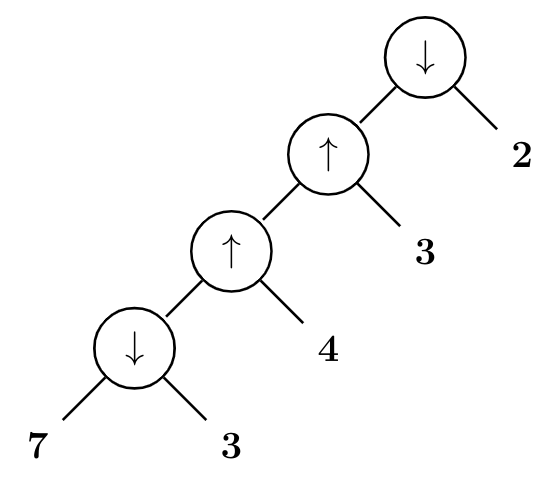

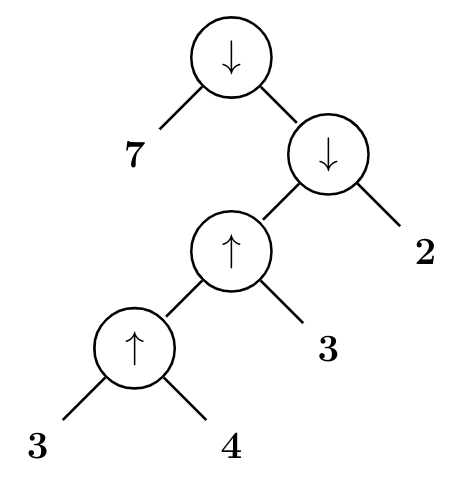

Consider two binary operators $\text{‘} \uparrow \text{’}$ and $\text{‘} \downarrow \text{’}$ with the precedence of operator $\downarrow$ being lower than that of the operator $\uparrow$. Operator $\uparrow$ is right associative while operator $\downarrow$ is left associative. Which one of the following represents the parse tree for expression $(7 \downarrow 3 \uparrow 4 \uparrow 3 \downarrow 2)$
