Q80

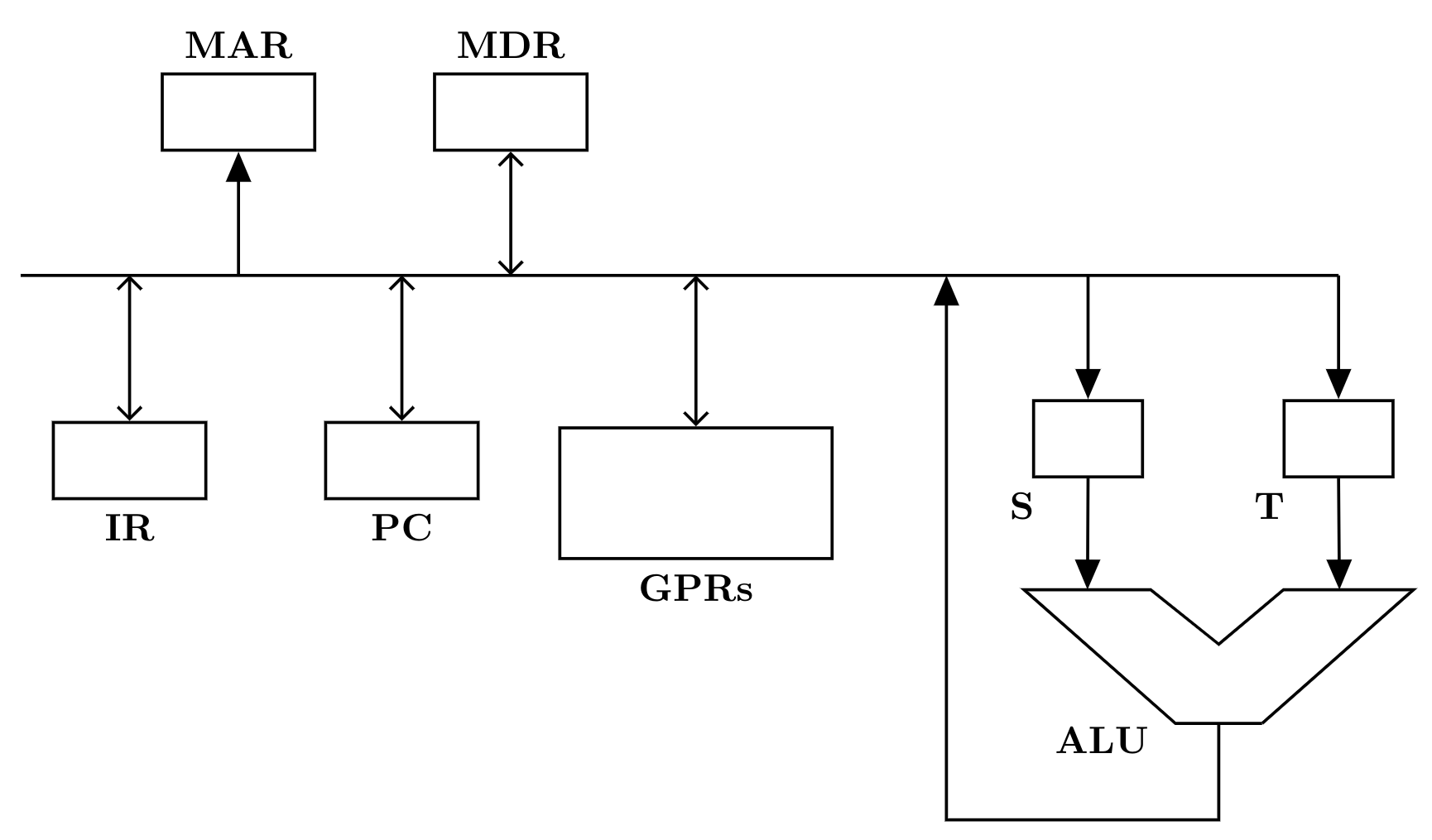

Consider the following data path of a $\text{CPU}.$

The $\text{ALU},$ the bus and all the registers in the data path are of identical size. All operations including incrementation of the $\text{PC}$ and the $\text{GPRs}$ are to be carried out in the $\text{ALU}.$ Two clock cycles are needed for memory read operation – the first one for loading address in the $\text{MAR}$ and the next one for loading data from the memory bus into the $\text{MDR}.$ The instruction "call Rn, sub” is a two word instruction. Assuming that $\text{PC}$ is incremented during the fetch cycle of the first word of the instruction, its register transfer interpretation is $\text{Rn} \leftarrow \text{PC} + 1$; $\text{PC} \leftarrow \text{M[PC]}$; The minimum number of CPU clock cycles needed during the execution cycle of this instruction is:
