Q64
MCQ2 marks, −0.5Consider the following circuit:

The flip-flops are positive edge triggered s. Each state is designated as a two-bit string . Let the initial state be The state transition sequence is
Sign in to save attempts.
Loading…

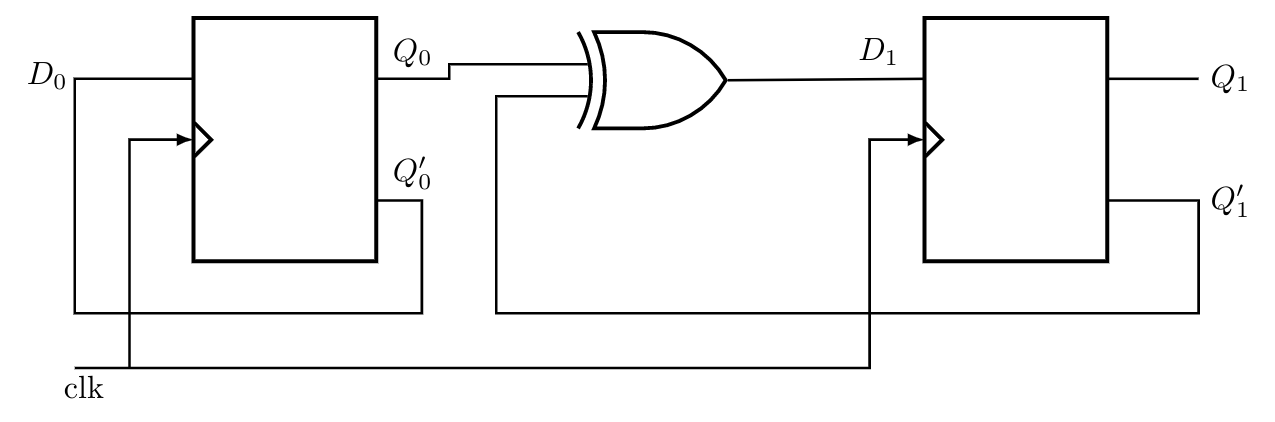

Consider the following circuit:

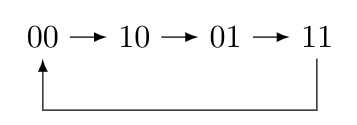

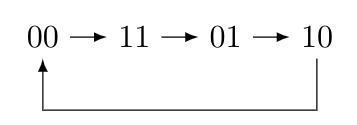

The flip-flops are positive edge triggered s. Each state is designated as a two-bit string . Let the initial state be The state transition sequence is
