Q33

MSQ2 marks

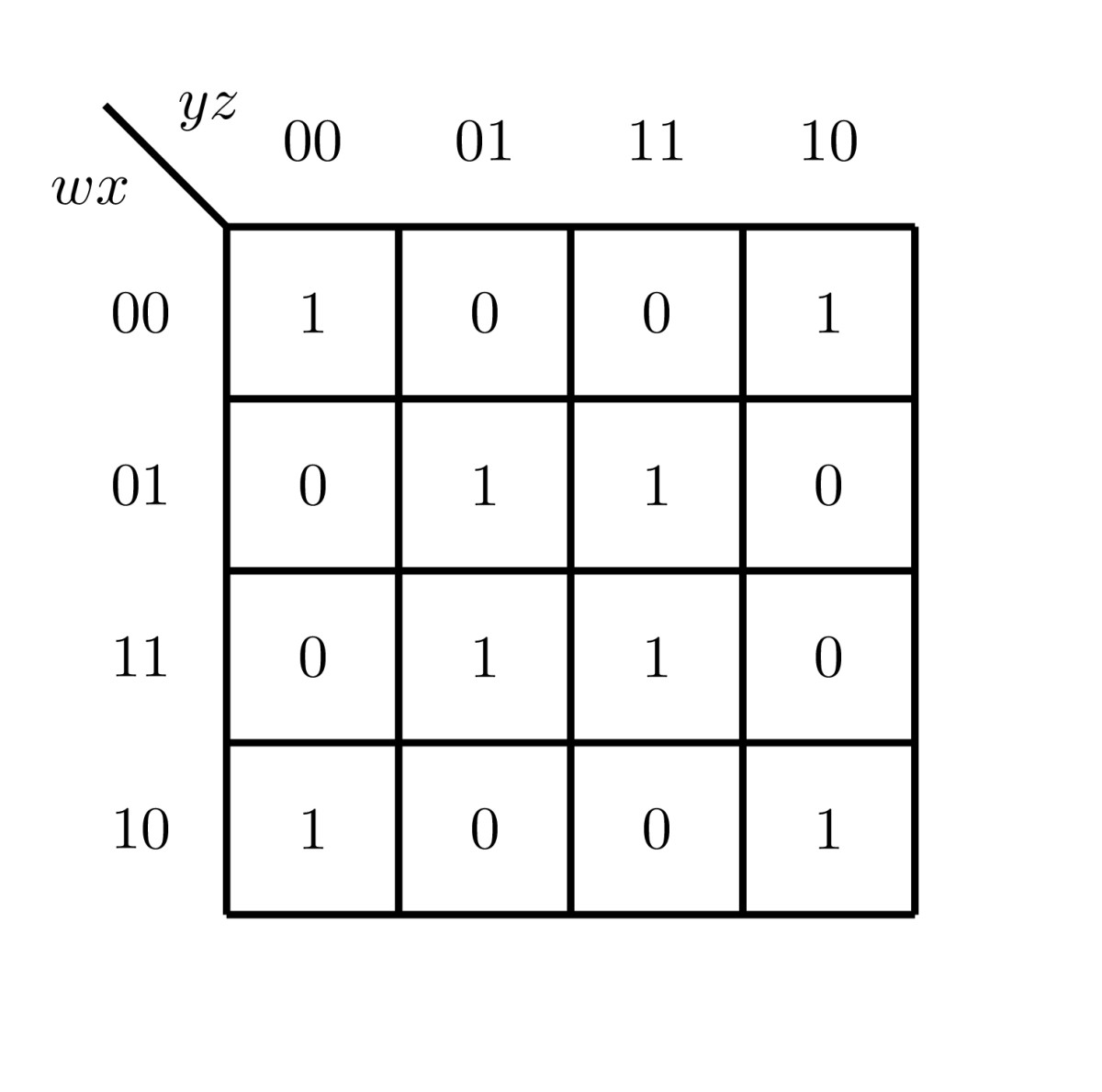

Given the following Karnaugh Map for a Boolean function $F(w, x, y, z)$ :

Which one or more of the following Boolean expression(s) represent(s) $F$ ?

(A)

$\bar{w} \bar{x} \bar{y} \bar{z}+w \bar{x} \bar{y} \bar{z}+\bar{w} \bar{x} y \bar{z}+w \bar{x} y \bar{z}+x z$

(B)

$\bar{w} \bar{x} \bar{y} \bar{z}+\bar{w} \bar{x} y \bar{z}+w \bar{x} y z+x z$

(C)

$\bar{w} \bar{x} \bar{y} \bar{z}+w \bar{x} \bar{y} \bar{z}+w \bar{x} \bar{y} z+x z$

(D)

$\bar{x} \bar{z}+x z$
