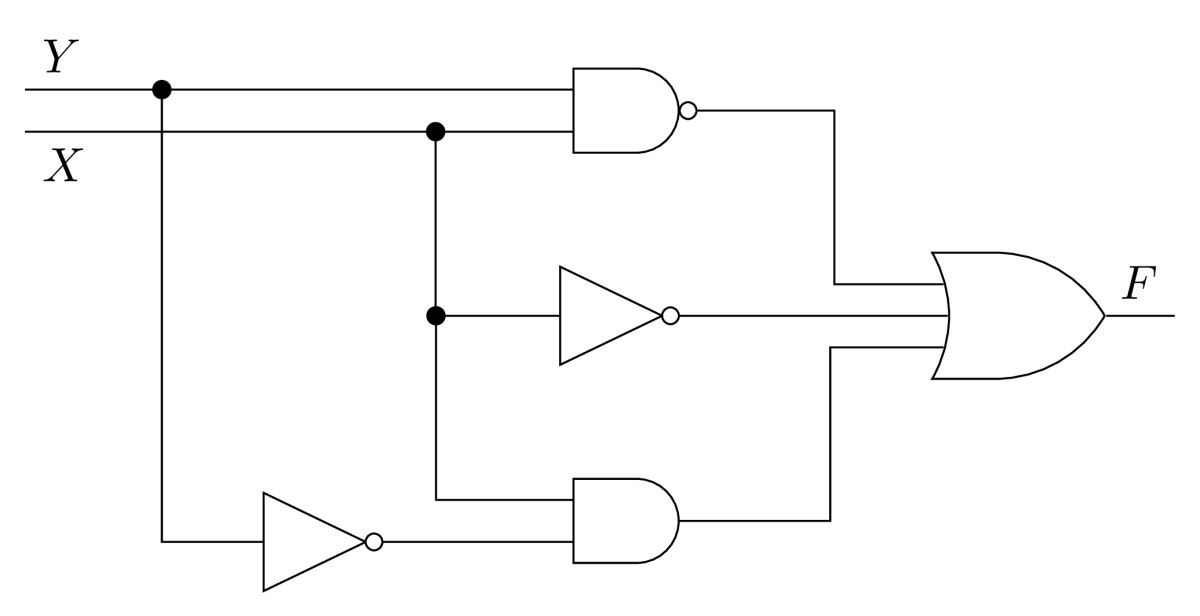

Consider the following logic circuit diagram.

Which is/are the CORRECT option(s) for the output function $F$ ?

(A)

$\overline{X Y}$

(B)

$\overline{X}+\overline{Y}+X \overline{Y}$

(C)

$\overline{XY}+\overline{X}+X \overline{Y}$

(D)

$X+\overline{Y}$
