Consider $4$ -variable functions $f 1, f 2, f 3, f 4$ expressed in sum-of-minterms form as given below.

\begin{array}{l} f 1=\sum(0,2,3,5,7,8,11,13) \\ f 2=\sum(1,3,5,7,11,13,15) \\ f 3=\sum(0,1,4,11) \\ f 4=\sum(0,2,6,13) \end{array}

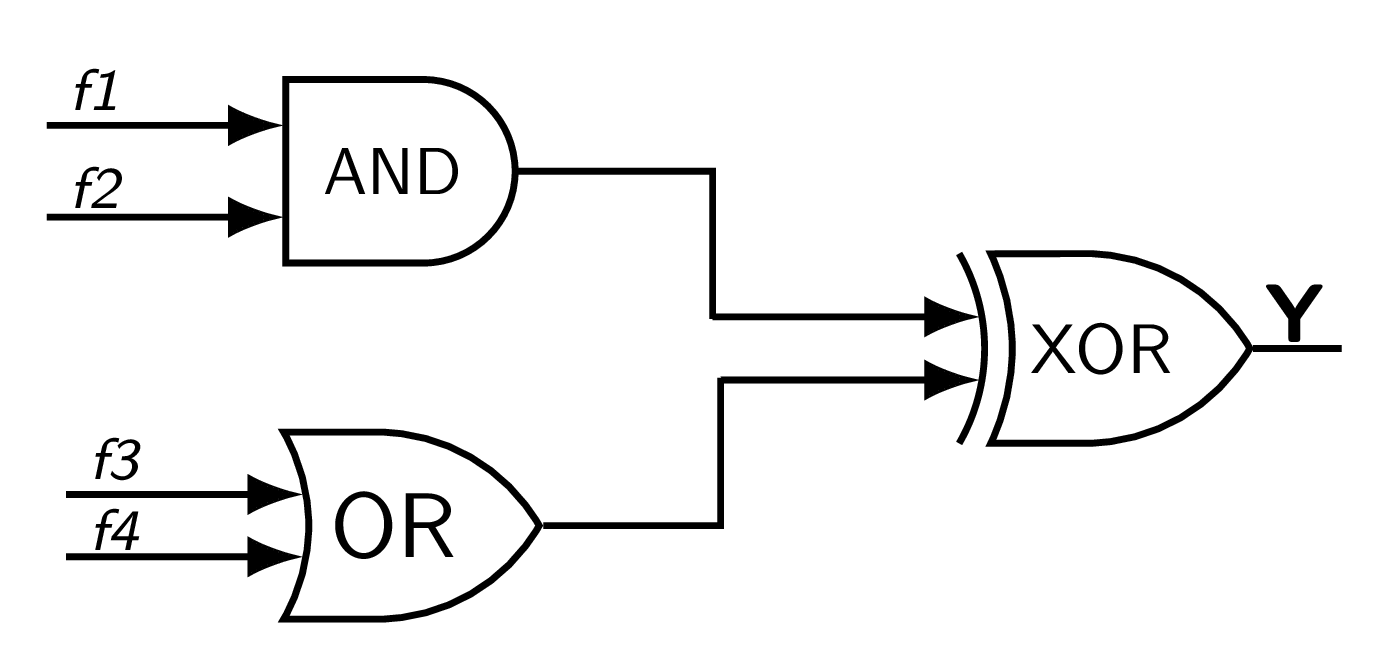

With respect to the circuit given above, which of the following options is/are CORRECT?

(A)

$\boldsymbol{Y}=\sum(0,1,2,11,13)$

(B)

$\boldsymbol{Y}=\Pi(3,4,5,6,7,8,9,10,12,14,15)$

(C)

$\boldsymbol{Y}=\sum(0,1,2,3,4,5,6,7)$

(D)

$\boldsymbol{Y}=\Pi(8,9,10,11,12,13,14,15)$
