Q28

MCQ2 marks, −0.67

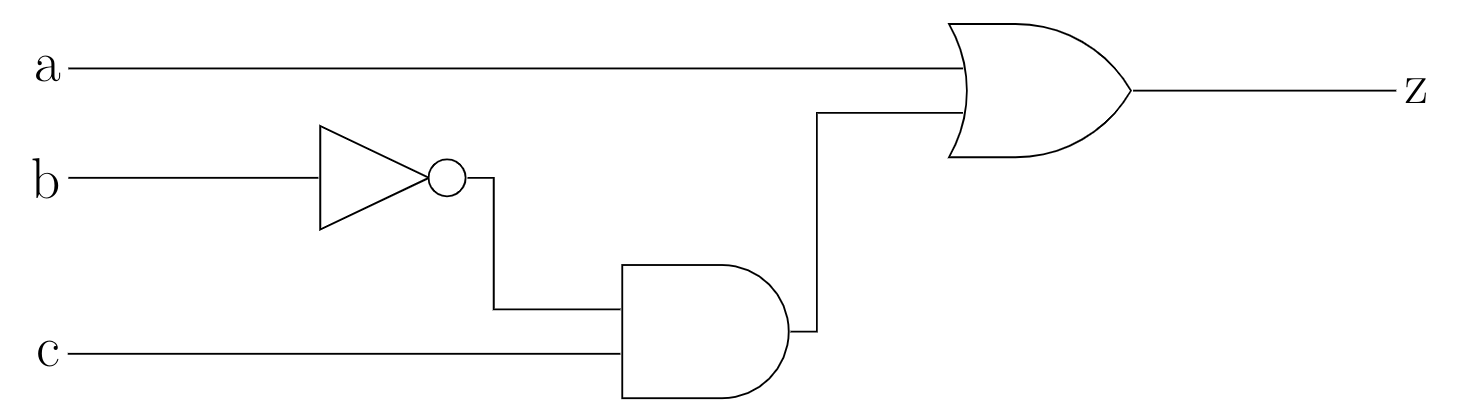

Consider the Boolean function $z(a,b,c)$ .

Which one of the following minterm lists represents the circuit given above?

(A)

$z=\sum (0,1,3,7)$

(B)

$z=\sum (1,4,5,6,7)$

(C)

$z=\sum (2,4,5,6,7)$

(D)

$z=\sum (2,3,5)$
