Q10

MCQMarks unknown

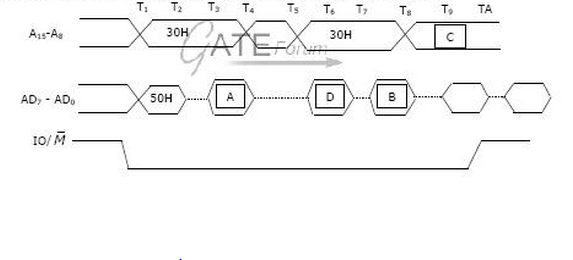

Consider the 8085 instruction IN 09H stored as follows: Memory Address Machine Code 3050 3051 DA 09 and the following incomplete timing diagram for the instruction:

(A)

Write the contents of the boxes, A, B, C and D in hexadecimal in your answer sheet. Do not draw any pictures.

(B)

Write the state of both ALE and $\overline{RD}$ pins at time units T1, T2, T3 and T4.

(C)

How do you generate the signal that tells the peripheral to put the data on the bus? Answer by completing the following statement in your answer book: By combining signals.........
