Q2.12

MCQ2 marks, −0.5

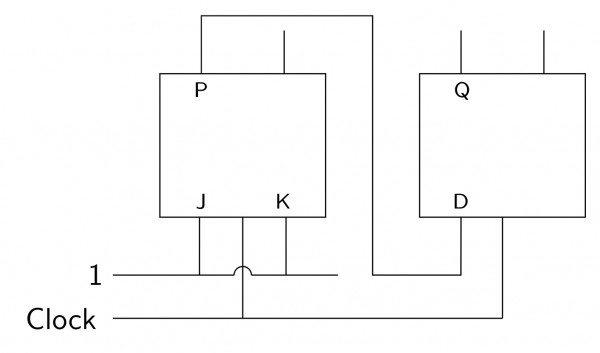

The following arrangement of master-slave flip flops

has the initial state of $P, Q$ as $0, 1$ (respectively). After three clock cycles the output state $P, Q$ is (respectively),

(A)

$1, 0$

(B)

$1, 1$

(C)

$0, 0$

(D)

$0, 1$
