Q14

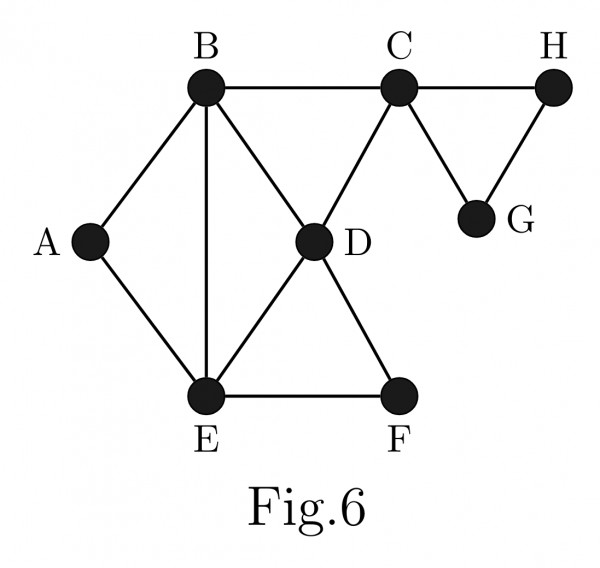

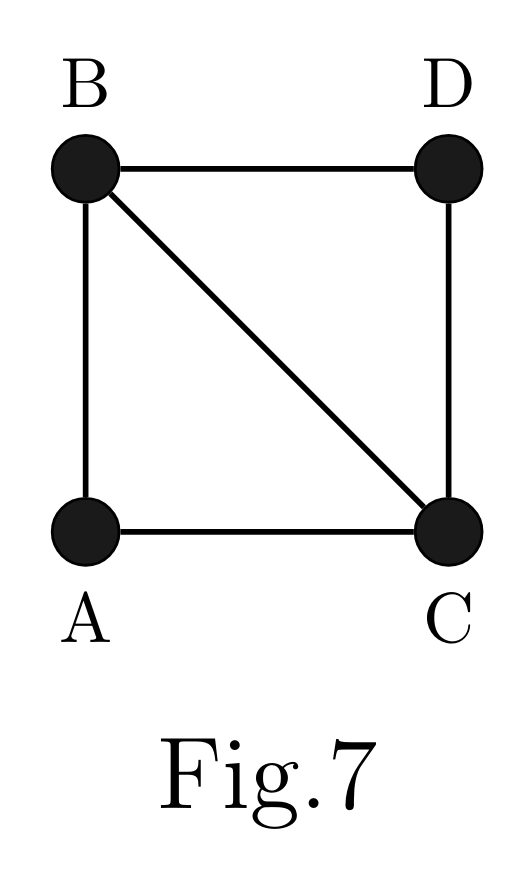

The following algorithm (written in pseudo-pascal) work on an undirected graph $G$ program Explore (G) procedure Visit (u) begin if Adj (u) is not empty {comment:Adj (u) is the list of edges incident to u} then begin Select an edge from Adj (u); Let edge be e=(u, v) remove e from Adj (u) and Adj (v); Visit (v); end else mark u as a finished vertex and remove u from LIST {Comment: LIST is the set of vertices in the graph} end; begin While LIST is not empty do begin Let v ∊ LIST; Visit (v); end end. Note: Initially $Adj(u)$ is the list of all edges incident to $u$ and LIST is the set of all vertices in the graph. They are globally accessible. What kind of subgraphs are obtained when this algorithm traverses the graphs $G_{1}$ and $G_{2}$ shown in Fig$.(6)$ and Fig$.(7)$ respectively?

What is the commonly Known traversal of graphs that can be obtained from the subgraphs generated by Program Explore? Show that the time complexity of the procedure is $O (v + e)$ for a graph with $v$ vertices and $e$ edges, given that each vertex can be accessed and removed from LIST in constant time. Also, show that all edges of the graph are traversed.
