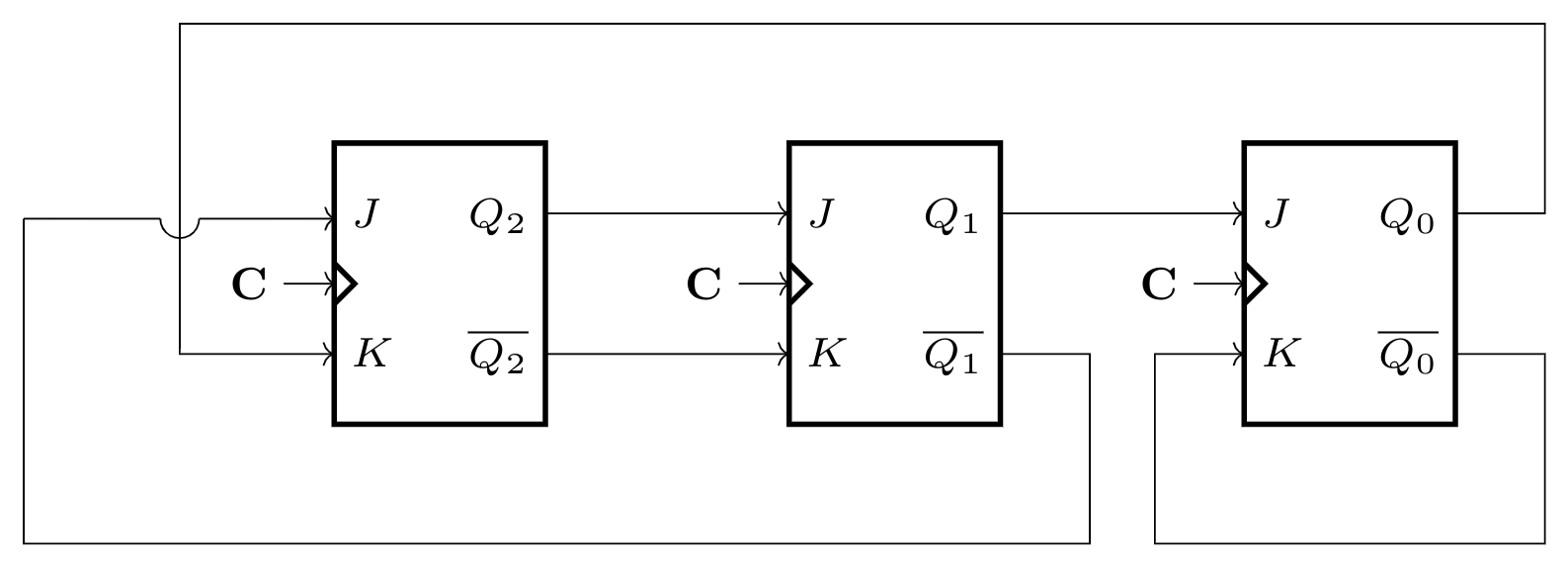

The above synchronous sequential circuit built using JK flip-flops is initialized with $Q_2Q_1Q_0 = 000$ . The state sequence for this circuit for the next $3$ clock cycles is

(A)

$001, 010, 011$

(B)

$111, 110, 101$

(C)

$100, 110, 111$

(D)

$100, 011, 001$
