Q49

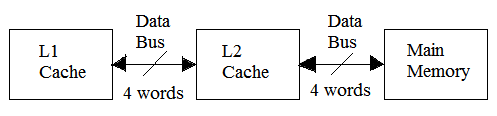

A computer system has an $L1$ cache, an $L2$ cache, and a main memory unit connected as shown below. The block size in $L1$ cache is $4$ words. The block size in $L2$ cache is $16$ words. The memory access times are $2$ nanoseconds, $20$ nanoseconds and $200$ nanoseconds for $L1$ cache, $L2$ cache and the main memory unit respectively.

When there is a miss in both $L1$ cache and $L2$ cache, first a block is transferred from main memory to $L2$ cache, and then a block is transferred from $L2$ cache to $L1$ cache. What is the total time taken for these transfers?
