Q32

MCQ2 marks, −0.67

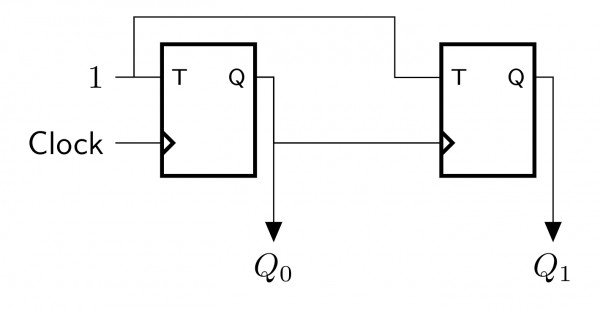

In the sequential circuit shown below, if the initial value of the output $Q_1Q_0$ is $00$ . What are the next four values of $Q_1Q_0$ ?

(A)

$11$ , $10$ , $01$ , $00$

(B)

$10$ , $11$ , $01$ , $00$

(C)

$10$ , $00$ , $01$ , $11$

(D)

$11$ , $10$ , $00$ , $01$
