Q2.11

MCQ2 marks, −0.5

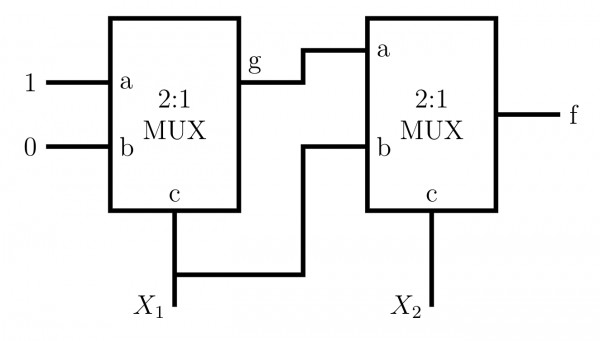

Consider the circuit shown below. The output of a $2:1$ MUX is given by the function $(ac' + bc)$ .

Which of the following is true?

(A)

$f=X_1'+X_2$

(B)

$f=X_1'X_2+X_1X_2'$

(C)

$f=X_1X_2+X_1'X_2'$

(D)

$f=X_1+X_2'$
