Q2.8

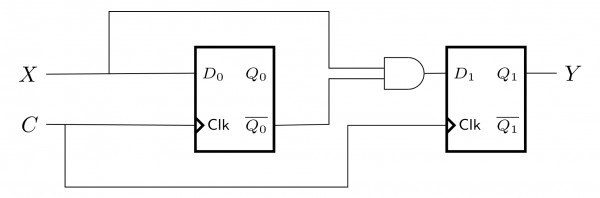

Consider the following circuit with initial state $Q_0 = Q_1 = 0$. The D Flip-flops are positive edged triggered and have set up times 20 nanosecond and hold times $0.$

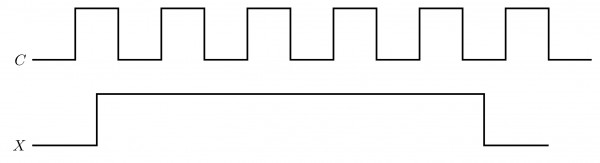

Consider the following timing diagrams of X and C. The clock period of $C \geq 40$ nanosecond. Which one is the correct plot of Y?
