Q12

MCQMarks unknown

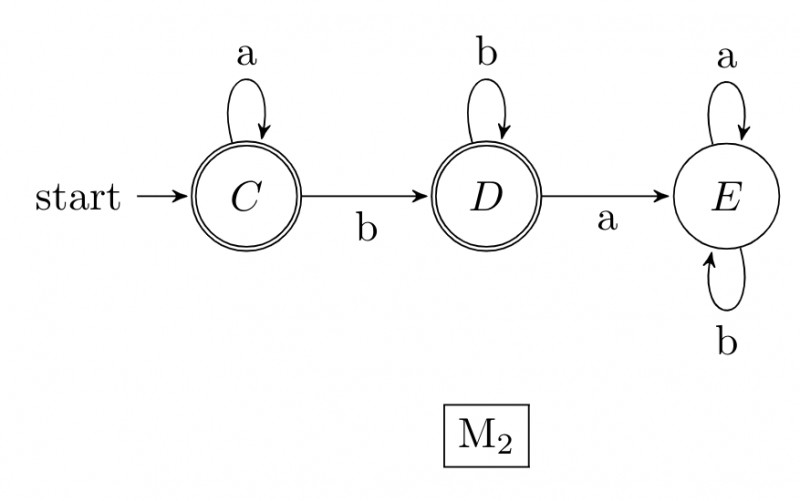

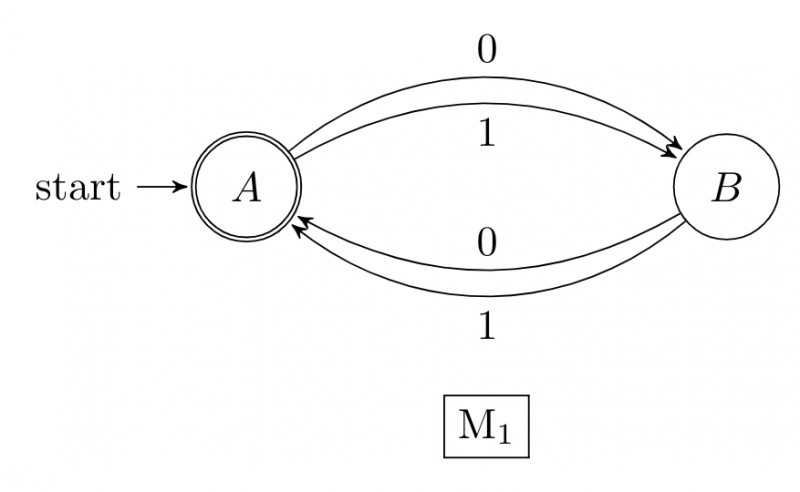

Given below are the transition diagrams for two finite state machines $M_1$ and $M_2$ recognizing languages $L_1$ and $L_2$ respectively.

(A)

Display the transition diagram for a machine that recognizes $L_1.L_2$ , obtained from transition diagrams for $M_1$ and $M_2$ by adding only $\varepsilon$ transitions and no new states.

(B)

Modify the transition diagram obtained in part (a) obtain a transition diagram for a machine that recognizes $(L_1.L_2)^*$ by adding only $\varepsilon$ transitions and no new states. (Final states are enclosed in double circles).
