Q54

NAT2 marks

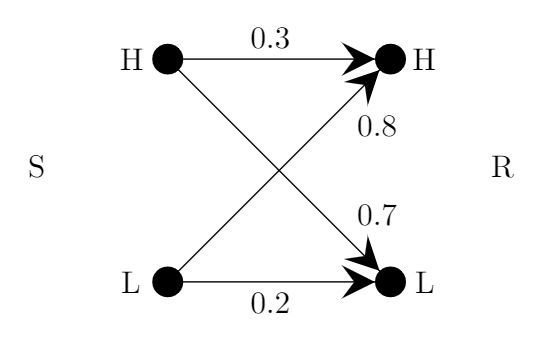

A sender (S)(\textsf{S}) transmits a signal, which can be one of the two kinds: HH and LL with probabilities 0.10.1 and 0.90.9 respectively, to a receiver (R)(\textsf{R}). In the graph below, the weight of edge (u,v)(u,v) is the probability of receiving vv when uu is transmitted, where u,v∈{H,L}u,v \in \{H,L\}. For example, the probability that the received signal is LL given the transmitted signal was HH, is 0.70.7.

Figure 1

If the received signal is H,H, the probability that the transmitted signal was HH (rounded to 22 decimal places) is __________.
