Q28

MCQ2 marks, −0.67

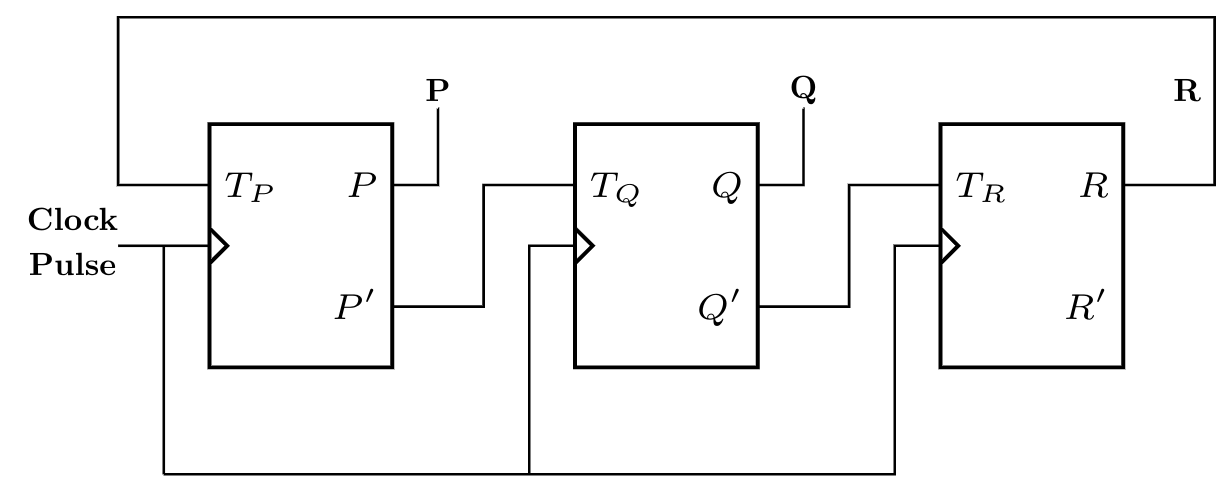

Consider a $3$ -bit counter, designed using $T$ flip-flops, as shown below:

Assuming the initial state of the counter given by $\text{PQR}$ as $000$ , what are the next three states?

(A)

$011,101,000$

(B)

$001,010,111$

(C)

$011,101,111$

(D)

$001,010,000$
