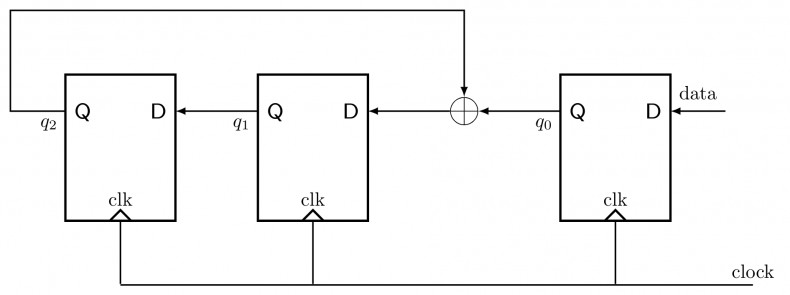

Consider the circuit in the diagram. The $\oplus$ operator represents Ex-OR. The D flip-flops are initialized to zeroes (cleared).

The following data: $100110000$ is supplied to the “data” terminal in nine clock cycles. After that the values of $q_{2}q_{1}q_{0}$ are:

(A)

$000$

(B)

$001$

(C)

$010$

(D)

$101$
