Q1.8

MCQMarks unknown

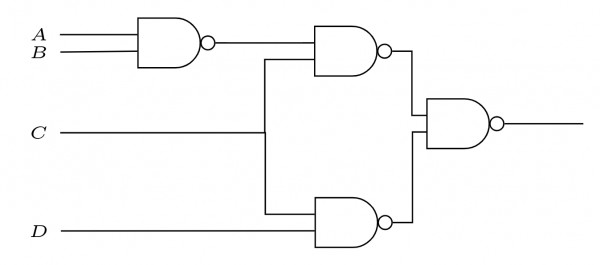

The logic expression for the output of the circuit shown in figure below is:

(A)

$\overline{AC} + \overline{BC} +CD$

(B)

$\overline{A}C + \overline{B}C + CD$

(C)

$ABC +\overline {C}\; \overline{D}$

(D)

$\overline{A}\; \overline{B} + \overline{B}\; \overline{C} +CD$
