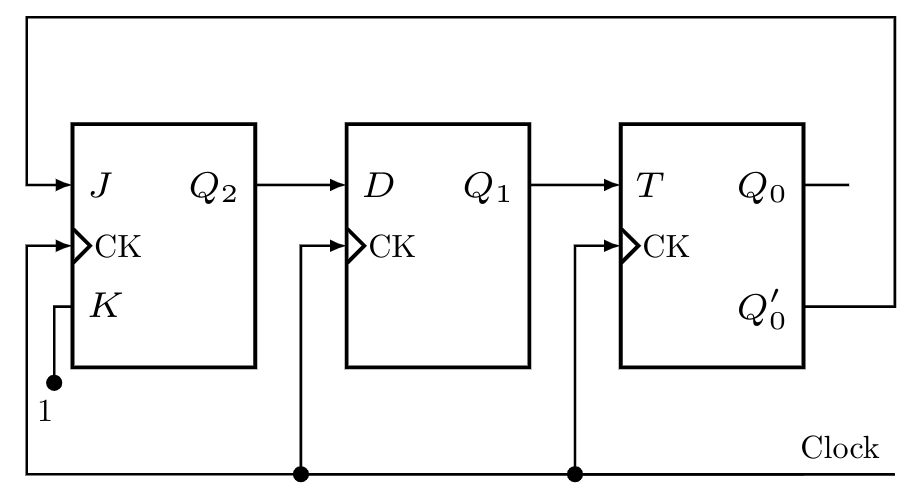

Find the contents of the flip-flop Q2,Q1Q_2, Q_1 and Q0Q_0 in the circuit of figure, after giving four clock pulses to the clock terminal. Assume Q2Q1Q0=000Q_2Q_1Q_0=000 initially.
