Q3a-b

MCQMarks unknown

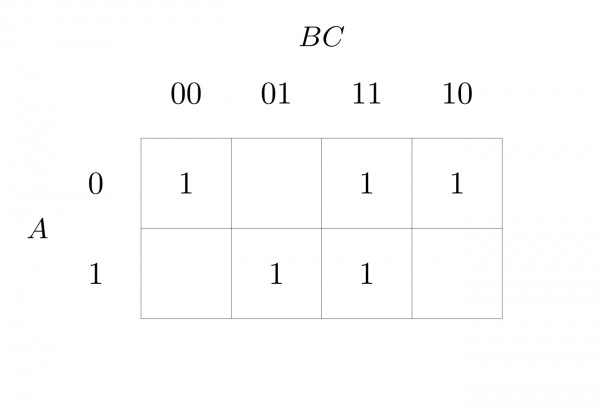

Figure 1

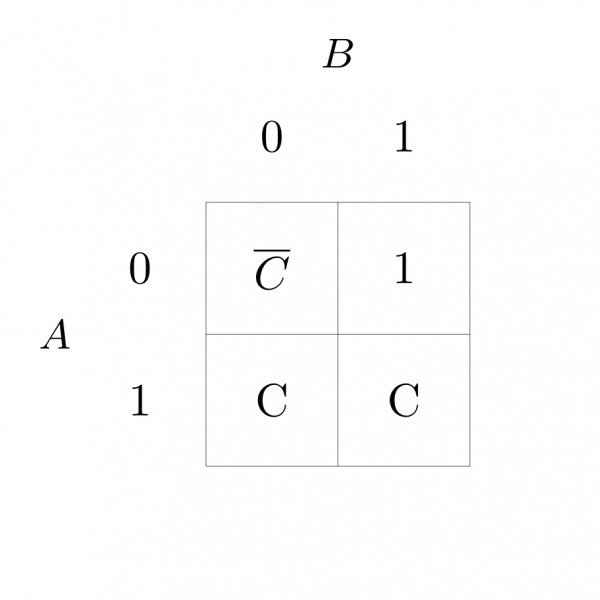

Figure 2

The Karnaugh map of a function of (A,B,C)(A, B, C) is shown on the left hand side of the above figure. The reduced form of the same map is shown on the right hand side, in which the variable CC is entered in the map itself. Discuss,
