Q2-v

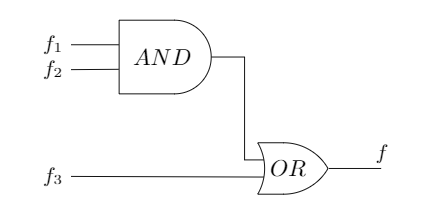

Three switching functions $f_1, \: f_2 \:$ and $f_3$ are expressed below as sum of minterms. $f_1 (w, x, y, z) = \sum \: 0, 1, 2, 3, 5, 12$ $f_2 (w, x, y, z) = \sum \: 0, 1, 2, 10, 13, 14, 15$ $f_3 (w, x, y, z) = \sum \: 2, 4, 5, 8$ Express the function $f$ realised by the circuit shown in the below figure as the sum of minterms (in decimal notation).
