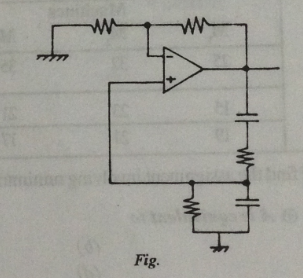

Fig. below shows the circuit diagram of a wien bridge oscillator using an op-amp.

Figure 1

The frequency of oscillation is given by f=1/2πCRf= 1/2 \pi CR. To have the system oscillate the ratio R2/R1R_{2}/R_{1} should be
