Q19

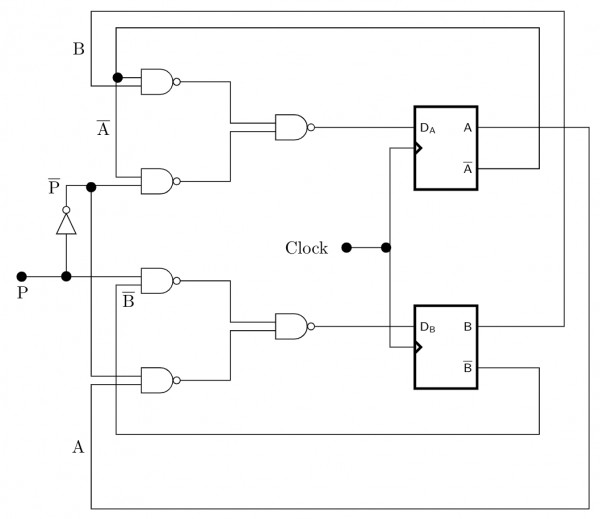

A control algorithm is implemented by the NAND – gate circuitry given in figure below, where $A$ and $B$ are state variable implemented by $D$ flip-flops, and $P$ is control input. Develop the state transition table for this controller.
